Hello World! Application

Welcome to the world of struts 2 framework. In this article you'll get how to develop basic Hello World! Application using struts 2 in Netbeans 7. As operating system I am using Linux Ubuntu but, it does not matter which OS you use, the only thing matter is Struts 2.

Softwares you'll need.

These are the sites from where you can download all needed softwares and file.

1. JDK 1.5 or above. (Download)
2. Netbeans 7 (Download)
   There is option for the particular platform supported version in both above software.
3. Apache struts 2 jar file. (Download)

You do not need to install server separately, with Netbeans set-up you can install two servers, Glassfish and Apache tomcat. You can use either at once for deploy and running the application.

Lets do it!

Create web application from the File -> New Project, from Netbeans.

Give your project name and set physical path of the project.



Select the server from the list and the Java EE version. You can set your context path.

 [Note : It is preferable to select Java EE 5.]

 Directory Structure

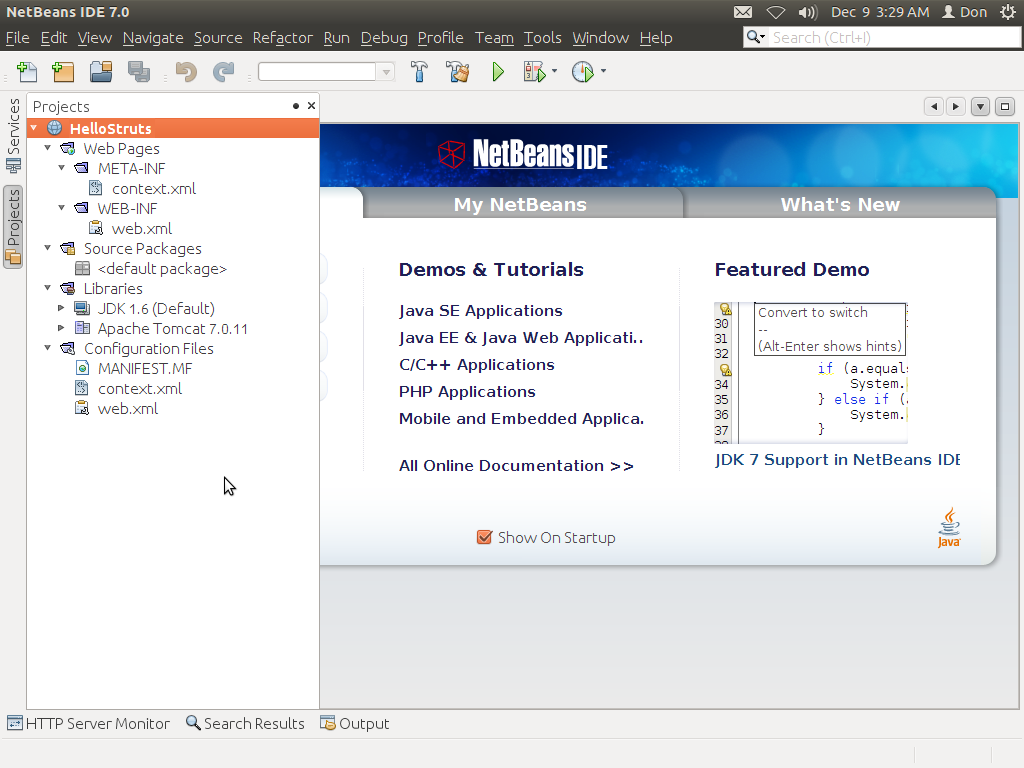

After completion of start up process you'll get the directory structure of the project like this.

Now first thing you have to do is add some struts 2 JAR file. Just add below mentioned JAR files from the Struts 2 you have downloaded.

• commons-logging-1.0.4.jar
• freemarker-2.3.8.jar
• ognl-2.6.11.jar
• struts2-core-2.0.12.jar
• xwork-2.0.6.jar

Struts 2 is combine of many jar files. This jar file version may differ with the version of the Struts 2.

Note : We'll study each JAR files in future articles.

The above directory structure represent the basic structure. You have to take care about the files you are going to create.

1. All the JSP files should kept in Web Pages folder.
2. Keep you STRUTS.XML and Property file in WEB-INF -> classes(You can choose your name here)
3. Keep your action class files in Source Packages folder.

Take a look at below directory structure of this program for reference.

• HelloStruts
  • Web Pages
    • META-INF
      • context.xml
    • WEB-INF
      • classes
        • ApplicationResources.Properties
        • struts.xml
      • WEB.XML
    • index.jsp
    • welcome.jsp
  • Source Packages
    • javabysm.struts2
      • HelloStruts.java
  • Libraries
    • common-logging-1.0.4.jar
    • freemarker-2.3.8.jar
    • ognl-2.6.11.jar
    • struts2-core-2.0.14.jar
    • xwork-2.0.7.jar
    • JDK 1.6 (Note: JDK version is what you have installed)
    • Apache Tomcat 7.0.11 (Note: Apache Tomcat version is what you have installed)
  • Configuration Files

Make sure you follow the structure coz it may create problem if file are not at there places.

WEB.XML

WEB.XML is the deployment descriptor which leads the execution of the project. You can say this is the entrance of the project execution. In this application we are using FilterDispatcher. This filter executes actions by consulting the ActionMapper and determining if the requested URL should invoke an action. If the mapper indicates it should, the rest of the filter chain is stopped and the action is invoked. This is important, as it means that filters like the SiteMesh filter must be placed before this filter or they will not be able to decorate the output of actions.



Index.jsp

As you can see in the above image of INDEX.JSP there are few tags belong to struts 2 framework.

First of all the tag <%@taglib ... %> need to include and use struts 2 tags.

Next one is <s:actionerror/> The actionerror tag is a UI tag that renders action errors (in the jsp pages.) if they exists while the actionmessage tag renders action messages if they exists. We have created an action class that uses methods addActionMessage(String) and addActionError(String) within the execute() method. The addActionMessage(String) will print the passed string on the success jsp page while the addActionError(String) will print the passed string on the error jsp page.

<s:form> is same as we have in JSP, the difference is JSP form tag directly calls the servlet where as in struts 2 action refers to the action mentioned in the struts.xml file.

On the click of submit button the respective action in the struts.xml file will call.

Welcome.jsp

Above image represent the welcome.jsp file. Same as index.jsp we have included the struts tag library.

We have used <s:property > tag to display the value of the class attribute. The property tag is a generic tag that is used to get the property of a value, which will default to the top of the stack if none is specified.

HelloStruts.java

Above is the action or we can say class which have the business logic. Above action class has one String attribute named USERNAME. As execute() method which a default method for any struts 2 action class.

Method execute() return success if user have inserted something in the textbox in the index.jsp, else it return error. In addition it sets the ActionError with the value of property name error.login. The valu of error.login will reflect in the tag <s:actionerror> in the index.jsp page.

At the end of the execute() method control will move to struts.xml file and respective result tag will execute. If it returns success then Welcome.jsp will call, otherwise Index.jsp.

STRUTS.XML

The Struts 2 Framework uses a configuration file (struts.xml) to initialize its own resources. These resources include:

• Interceptors that can pre-process and post-process a request
• Action classes that can call business logic and data access code
• Results that can prepare views using JavaServer Pages, Velocity and FreeMarker templates


Note that in above configuration file, we have defined hellostruts action of our application. Two result paths are mapped with hellostruts depending on the outcome of execute() method. If execute() method returns success, user will be redirected to Welcome.jsp else to Index.jsp.
Also note that a constant is specified with name struts.custom.i18n.resources. This constant specify the resource bundle file that we created in struts.xml. We just have to specify name of resource bundle file without extension (ApplicationResources without .properties).
Our HelloStruts(POJO) contains the method execute() which is the default method getting called by Sturts2. If the name of method is different, like call(); then we should specify the method name in

<action name="hellostruts" method=”call” class="javabysm.struts2.HelloStruts">

ApplicationResources.Properties

Resource Bundle:

Resource Bundle is very useful Java entity that helps in putting the static content away from the source file. Most of the application define a resource bundle file such as ApplicationResources.properties file which contains static messages such as Username or Password or Invalid Username/Password.
We have defined an ApplicationResources.properties file for our application. This property file should be present in WEB-INF/classes folders when the source is compiled.

Struts.xml map this value for us in the JSP file as we use <constant> tag in it.

e.g. <constant name="struts.custom.i18n.resources" value="ApplicationResources" />

The value attribute of above tag represent name of the Properities file. With use of this functionality we can use constants of the properties file in out JSP file.

e.g. <s:textfield name="username" key="label.username" size="20" />

The attribute KEY assigned a value label.username which is nothing but a constant in properties file. The value of the particular constant will assign here.

That's it!

All you need to do now is run the application. You'll get something like below.



You'll get error if you keep text box empty and press the submit button.
